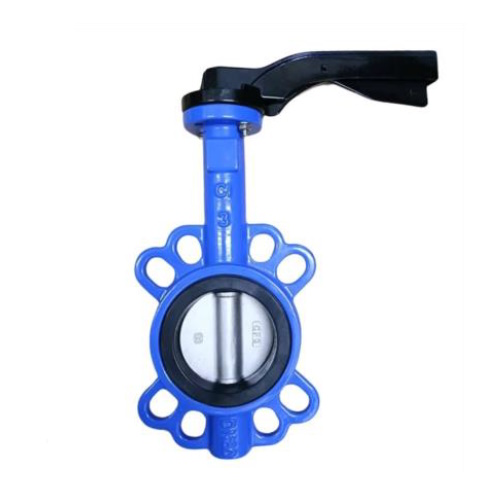

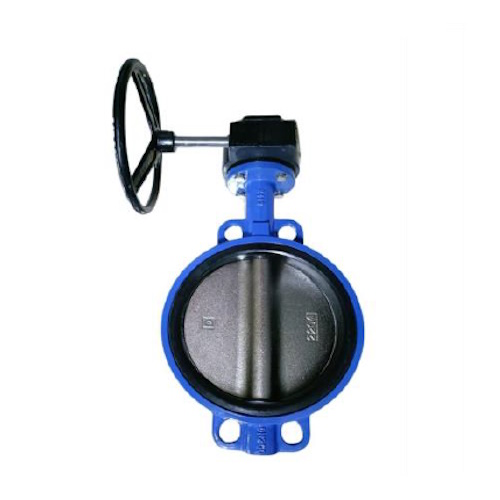

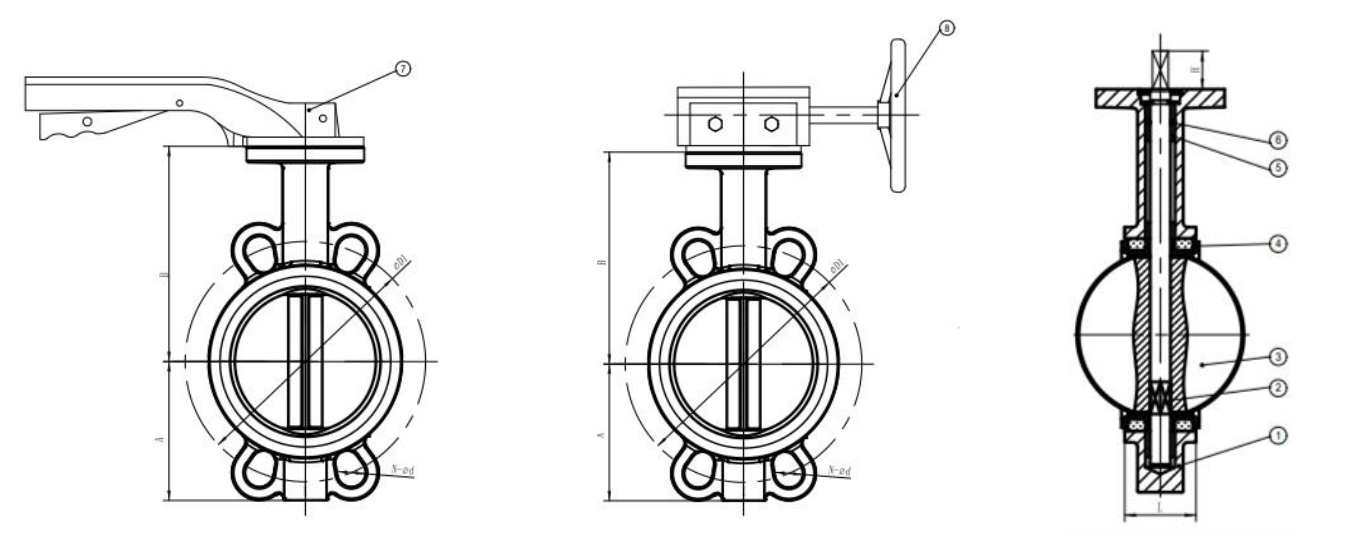

MBW16 Wafer Butterfly Valve

A wafer butterfly valve is a type of quarter-turn valve that controls the flow of fluids within a pipeline. It’s named for its distinct design, featuring a disc mounted on a rotating shaft. When the valve is closed, the disc is positioned perpendicular to the flow, blocking the passage of fluid. When open, the disc is rotated 90 degrees, allowing unrestricted flow.

Key Features

Compact Design: Wafer butterfly valves are designed to be installed between two pipe flanges, making them space-saving and ideal for tight installations.
Quick Operation: The quarter-turn design allows for rapid opening and closing of the valve.
Low Maintenance: These valves have a simple design with few moving parts, reducing the need for frequent maintenance.
Bi-directional Flow: Wafer butterfly valves can handle flow in both directions.

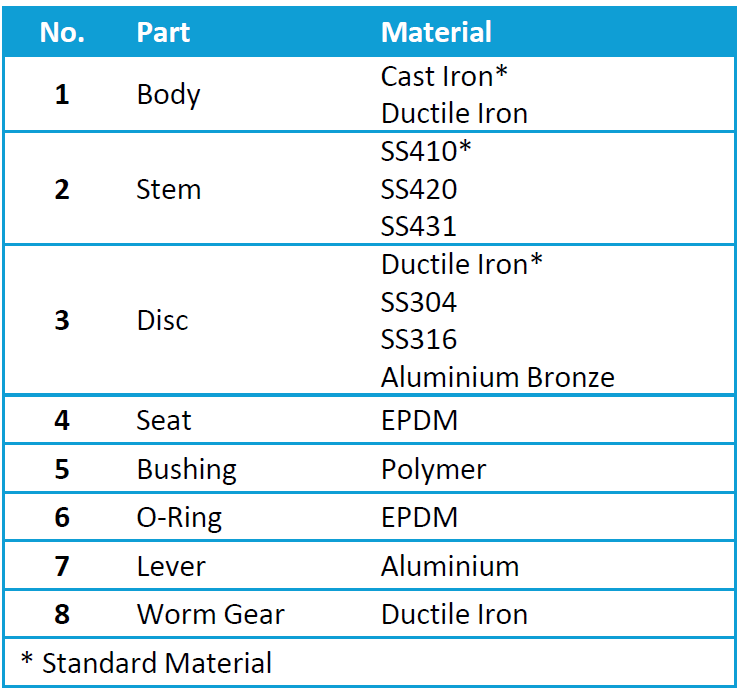

Variety of Materials: They can be constructed from various materials, including cast iron, stainless steel, and ductile iron, to suit different applications and fluid types.
